Online UPS

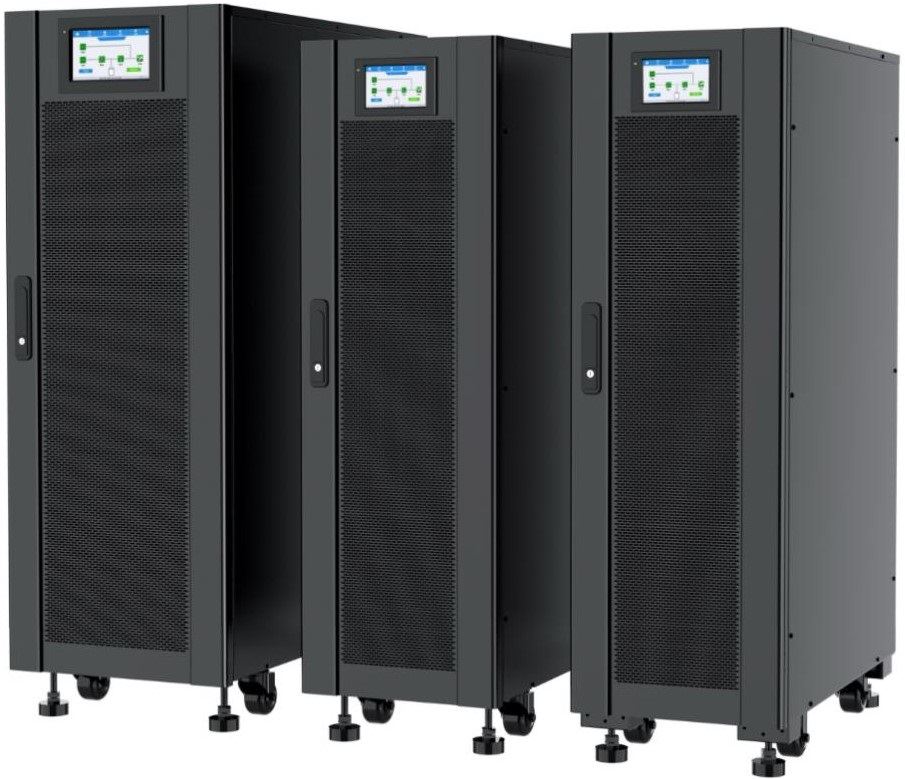

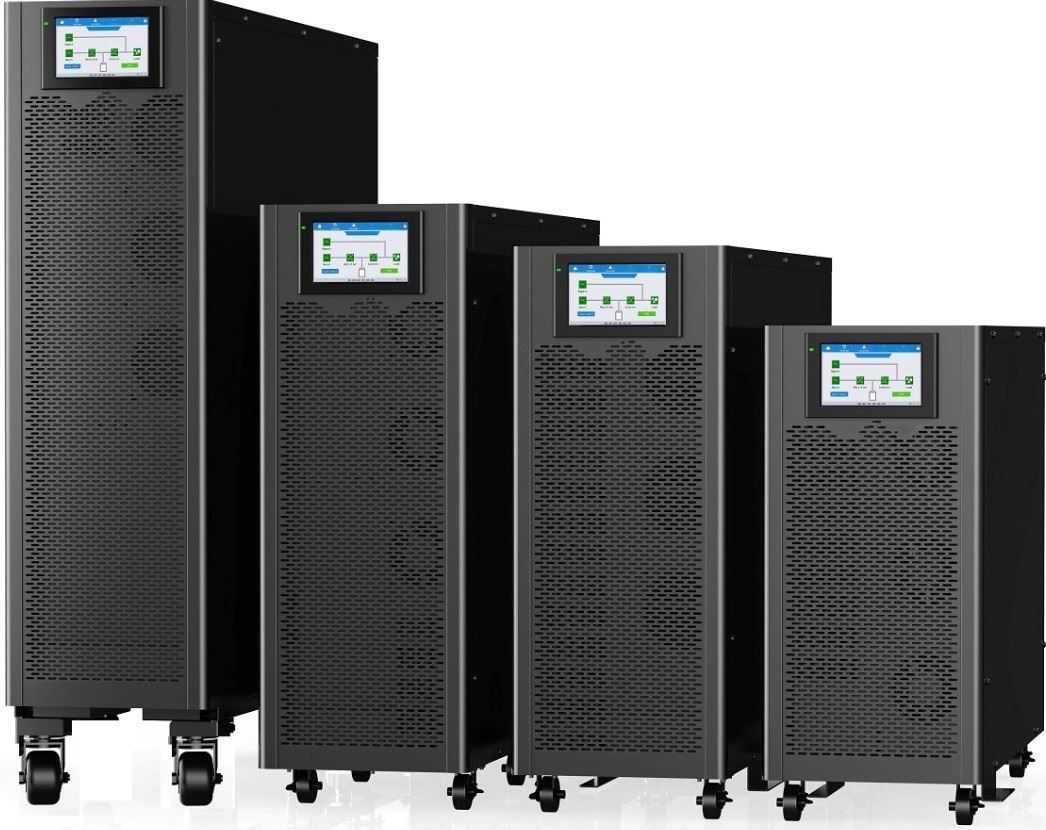

TF Series Three Phase In - 3 Phase Out 10-250 kVA
TF Series UPSs utilize the latest generation power components and a new generation high-efficiency 3-level topology, offering a functional, safe, easy-to-install and easy-to-use product with the latest power conversion technology.
- High-frequency online dual conversion technology
- Advanced dual-core DSP control technology and 3-level Three Level technology
- Active power factor correction (APFC), input power factor up to 0.99
- System efficiency = 95%, energy saving rate doubled
- Output Power Factor 1.0
- Dual input design supporting independent ByPass (Split Bypass)
- Advanced digital and parallel technology providing higher reliability than a single system
- Wide Input Voltage Range
- 50/60 Hz automatic detection frequency, 50/60 Hz frequency conversion mode
- Up to 98% work efficiency in ECO mode
- Fan speed intelligently changes according to load, reduces noise and extends service life
- Flexible battery configuration setting, selectable number of batteries: 32~40
- Digitally controlled charger (Max. 20…60 A & 20% output)
- Ability to power the UPS from the battery when there is no mains power (Cold Start)
- Zero crossing time for UPS power supply mode when mains power is unstable, ensuring uninterrupted output
- Compact internal layout, space-saving, 5-7” LCD color touchscreen
- Powerful backend software for parameter configuration and online upgrade
- Advanced multi-platform communication for UPS monitoring:
- RS232, USB, RS485, dry contacts, SNMP card, Wi-Fi card and GPRS card
- Intelligent battery management, automatic synchronization and variable charge control,
- Charger sleep mode control increasing charger reliability and extending battery life
- Effective hardware and software protection,
- Powerful self-diagnostic function, abundant event log for future checks
- Standard RS232, USB, RS485, EPO, Dry contacts, Parallel port
- Optional SNMP card, WI-FI card, GPRS card, SMS Alarms (Optional)
- Electromagnetic Compatibility, EMC – LVD CE Certificates
| MODEL | TF-10 | TF-20 | TF-30 | TF-40 | TF-60 | TF-80 | TF-100 | TF-120 | TF-160 | TF-200 | |
| POWER | 10 kVA/10 kW | 20 kVA/20 kW | 30 kVA/30 kW | 40 kVA/40 kW | 60 kVA /60 kW | 80 kVA / 80 kW | 100 kVA / 100 kW | 120 kVA / 120 kW | 160 kVA / 160 kW | 200 kVA / 200 kW | |
| INPUT | |||||||||||
| Voltage | 380 / 400 / 415 Vac (P-P) | ||||||||||
| Voltage Range | 228~478Vac (3Phase + N + PE) | 304 ~ 478 Vac (%100 Load) / 228 ~ 304 Vac (Decreases depending on load) | |||||||||
| Frequency | 50 – 60 Hz (Automatic Detection) | ||||||||||
| Frequency Range | 40-70 Hz ±% 0,5 | ||||||||||
| Power Factor | ≥ 0,99 | ||||||||||
| THDi | ≤ 1% at Linear Load; Non-Linear Load ≤ 3% | ≤ %5 | |||||||||
| ByPass Voltage Range | Factory Setting; -20%～+15% – Selectable from LCD Panel | ||||||||||
| Low Limit: +10%,+15%,+20%,+25%; Up Limit: -10%, -15%,-20%,-30%, -40%–Selectable from LCD Panel | |||||||||||
| ByPass Frequency Range | ±1Hz, ±3Hz,±5Hz – Selectable from LCD Panel | +%1 Hz., +%3 Hz, +%5 Hz Selectable from LCD Panel | |||||||||
| Bypass Overload Capacity | 125%: Can Operate Continuously | Long Time@<125% Load; 10 min.@125-130% Load; 1 min.@130-150% Load; 1 sec@150-400% Load; 200 ms@ ≥ 400% Load | |||||||||
| 125%~130%: 10 min.; 130%~150%: 1 min.; 150%~400%: 1 sec.; >400%, 200ms | |||||||||||
| OUTPUT | |||||||||||
| Voltage | 380 / 400 / 415 Vac. – Selectable from LCD Panel | 380 / 400 / 415 Vac–Selectable from LCD Panel | |||||||||
| Voltage Regulation | ± % 1 (Lineer Load) | ||||||||||
| Frequency | Synchronous with Mains, 50/60 Hz ± 0.1 Hz when operating from battery. | ||||||||||
| Power Factor | 1 | ||||||||||
| Wave Form | Pure Sine Wave | ||||||||||
| Crest Factor | 3:1 | ||||||||||
| THDv | ≤ 1% at Linear Load; ≤ 3% at Non-Linear Load | ||||||||||
| Transfer Time | 0 ms | 0 ms | |||||||||
| Inverter Overload Capacity | 60 min. @110% Load, 10 min. @110-25% Load, 1 min. @ 125-150% Load, 200 ms @ >150% Load | ||||||||||
| BATTERY | |||||||||||
| Battery Voltage | In Standard Models; 240 Vdc / 32-40 Units (Adjustable) | In Standard Models; 240 Vdc. / 32-40 Units (Adjustable) | |||||||||
| Battery Qty/Capacity | (10+10) | (20+20) | (15+15) * 2 Branchs | No Battery | |||||||
| 20*12V 7-9 Ah | 40*12V 7-9 Ah | 60*12V 7-9 Ah | |||||||||
| Charge Current | Max. 10A | Max. 15 A | Max. 20A | 30A | 40A | 60A | |||||
| Charging Voltage Accuracy | ≤ %1 | ≤ %1 | |||||||||
| SYSTEM | |||||||||||
| Efficiency | Maximum %95 | Maximum %96 | |||||||||
| Display | 5" Touchscreen | 7" Touchscreen | |||||||||
| Alarm | Battery Operation, Low Battery, Fan Error | ||||||||||
| Parallel Operation | Up to 6 (Optional) | ||||||||||
| Communication | Standard; RS 232, RS 485, USB | ||||||||||
| Optional; Programmable Dry Contact, SNMP, Parallel Kit | |||||||||||
| ENVIRONMENTAL | |||||||||||
| Operating Temperature | 0 ˚C~ 40 ˚C | ||||||||||
| Relative Humidity | 0% ~ 95% (Non-condensing) | ||||||||||
| Storage Temperature | -40 ˚C~ 70 ˚C | ||||||||||
| Acoustic Noise | ≤ 58 dB @1 m. | ≤ 70 dB@ 1 m | |||||||||
| Altitude | ≤1000m. 1000-2000 m per meter 1% Power Loss at 100 m | ||||||||||
| DIMENSIONS | |||||||||||
| Net Dimen. (WxDxH) mm | 250x720x560 | 250x800x700 | 250x840x930 | 250x720x560 | 250x790x560 | 360x800x1200 | 360x850x1200 | 440x850x1250 | |||
| Packaged Dim. (WxDxH) mm | 350x800x722 | 350x900x862 | 350x950x1102 | 350x800x718 | 350x850x818 | 450x870x1370 | 450x940x1350 | 530x940x1410 | |||
| Net/Gross Weight (kg) | 82, 93 | 145, 156 | 215, 227 | 42, 52 | 48, 58 | 152, 172 | 156, 180 | 160, 180 | 194, 214 | 200, 220 | |
| STANDARDS | |||||||||||
| LVD: EN 62040-1, EMC: EN 62040-2 | |||||||||||
