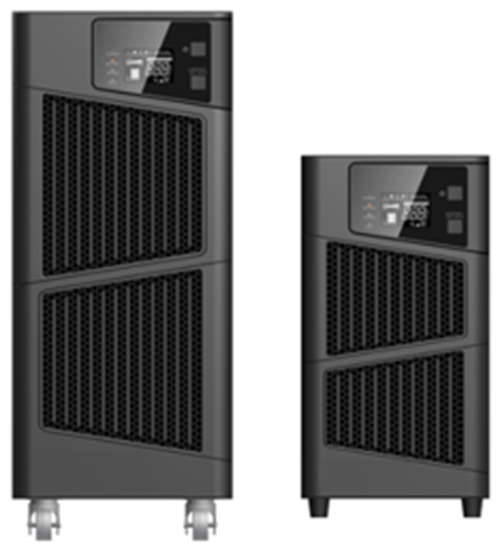

MF Series 6 kVA -10 kVA Online UPS
MF Series provide sinusoidal waveform output and contains advanced communication options. These series are 1 phase input, 1 phase output online UPS.
MF Series manufactured in different power ranges, are used to supply vital important equipment's such as medical analysis equipment's, operating rooms in hospitals, ultrasound equipment's, security systems, all kinds of automation systems, computer networks and communication systems. Thanks to higher protection providing technology. MF series protect them from problems of utility failures and irregular voltage.
- High Frequency True Double-Conversion
- DSP (Digital Signal Processing) Technology
- Input Power Factor Correction (PFC)
- Wide Input Voltage Range (110~300V)
- Output Power Factor = 0.9
- Cold Start (Starting from Battery without Mains)
- Automatic Frequency Detection
- ECO Mode for High Energy Saving
- Self-Test on Startup
- Advanced Battery Management (ABM)
- Short Circuit and Overload Protection
- Automatic Battery Charging in Off Position
- Load-Sensitive Intelligent Fan Control
- Excellent Generator Compatibility
- Standard RS232 Communication Port
- USB/SNMP/AS 400/Modbus (Optional)
- Emergency Shutdown Function (EPO) (Optional)
- Additional Battery Unit with Additional Magazine Card (Optional)
- Parallel Operation of Up to 3 Units (Optional)
- Electromagnetic Compatibility, EMC – LVD CE Certificates
| MODEL | MF-6 | MF-10 |
| POWER | 6.000 VA / 5.400 W | 10.000 / 9.000 W |
| INPUT | ||
| Voltage | 208 / 220 / 230 / 240 Vac | |
| Voltage Range | %100 Load (185– 275) ± 5Vac / %50 Load (120 – 185) ± 5Vac | |
| Frequency | 50 / 60 Hz | |
| Frequency Range | 40-70 Hz ± %0,5 (46-54 Hz/56-64 Hz) | |
| Input Power Factor | ≥ 0,99 | |
| Bypass Voltage Range | 160Vac - Nominal Output Voltage ± 32 Vac | |
| OUTPUT | ||
| Voltage | 208 / 220 / 230 / 240 Vac – Selectable from LCD | |
| Voltage Regulation | ± %1 | |
| Frequency | 50 / 60 Hz | |
| Waveform / Output Power Factor | Pure Sine Wave / cosF=0,9 | |
| Crest Factor | 3:1 | |
| Harmonic Distortion THDv | Lineer Load ≤ %2; Non Lineer Load ≤ %4 | |
| Transfer Time | Online-Battery Mode; 0 ms | |
| Overload Capacity | %105-%125 Load: 1 min, %125-150 Load: 30 sec. , %150 Load 0,5 sec. | |
| EFFICIENCY | ||
| On-Line Mode | ≥ %94 | |
| Eco Mode | ≥ %98 | |
| BATTERY | ||
| Number of Batteries / Capacity | 15 x 7 – 9 Ah Internal | 16 x 7 – 9 Ah Internal |
| Charging Current (Standard Model) | 1,2 Amp. | |
| Charging Current (Long Term) | 4 Amp. | |
| Charging Time | 7 hours for 90% Capacity | |
| GENERAL FEATURES | ||
| Alarms | Mains Failure, Low Battery, Overload, UPS General Error | |
| Display | LCD | |
| EPO | Optional | |
| Communication | RS 232 Standard, SNMP – MODBUS – AS 400 Card Optional | |
| Parallel Operation | 3 Units. (Optional) | |
| Maintenance ByPass | Optional | |
| Frequency Converter Mode | Yes (Power decreases by %60) | |
| ENVIRONMENTAL | ||
| Operational Temperature | 0 ˚C- 40 ˚C | |
| Humidity | %20-%90 | |
| Ingress Protection | IP20 | |
| Acoustic Noise | ≤ 50 dB @1m. | |
| Altitude | 0-3000m (After 1000 m., 1% Power Decreasing every 100m. ) | |
| STANDARDS | ||
| LVD :EN 62040-1, EMC: EN 62040-2, EN 61000-4-2,EN 61000-4-3, EN 61000-4-4, EN 61000-4-5 | ||
| PHYSCIALLY | ||
| Dimensions (WxDxH) mm. | 248 x 500 x 616 | |
| Net Weight (kg) | 59 | 63 |
| Gross Weight (kg) | 65 | 68 |
