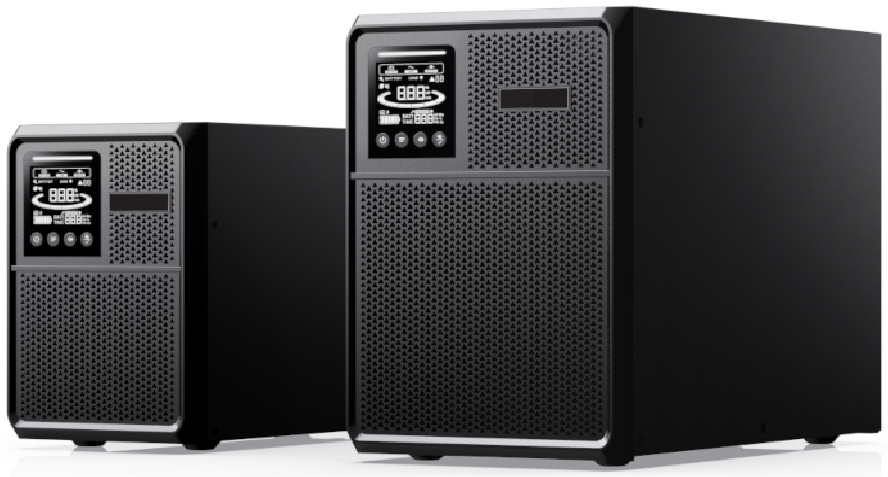

MF Series 1 kVA -3 kVA Online UPS
MF Series provide sinusoidal waveform output and contains advanced communication options. These series are 1 phase input, 1 phase output online UPS.
MF Series manufactured in different power ranges, are used to supply vital important equipment's such as medical analysis equipment's, operating rooms in hospitals, ultrasound equipment's, security systems, all kinds of automation systems, computer networks and communication systems. Thanks to higher protection providing technology. MF series protect them from problems of utility failures and irregular voltage.
- High Frequency True Double-Conversion
- DSP (Digital Signal Processors) Technology
- Input Power Factor Correction (PFC)
- Wide Input Voltage Range (110~300V)
- Remaining Battery Runtime Display
- LED Warning with Color Change According to Operating Mode
- Output Power Factor = 0.9
- Cold Start (Starting from Battery Without Mains)
- Automatic Frequency Detection
- Frequency Converter Mode
- ECO Mode for High Energy Saving
- Selectable Output Voltage via LCD Screen
- Self-Test on Startup
- Advanced Battery Management (ABM)
- Short Circuit and Overload Protection
- Automatic Battery Charging in OFF Position
- Load-Sensitive Intelligent Fan Control
- Excellent Generator Compatibility
- Standard RS232 / USB
- Standard Emergency Shutdown Function (EPO)
| MODEL | MF-1 | MF-2 | MF-3 |
| POWER | 1.000 VA / 900 W | 2.000 VA / 1.800 W | 3.000 VA / 2.700 W |
| INPUT | |||
| Voltage | 208 / 220 / 230 / 240 Vac | ||
| Voltage Range | 100% Load: 176 ~ 300 Vac / 50% Load: 110 ~ 300 Vac | ||
| Frequency | 45 ~ 55 Hz /54 ~ 66 Hz | ||
| Input Power Factor | ≥ 0,98 | ||
| OUTPUT | |||
| Voltage | 200 / 208 / 220 / 230 / 240 Vac – Selectable from LCD Panel. (10% Power Drop @ 200/208 Vac) | ||
| Voltage Regulation | ± %1 | ||
| Frequency | 50 / 60 Hz ±0.05 Hz | ||
| Waveform / Output Power Factor | Pure Sine Wave / 0.9 | ||
| Crest Factor | 3:1 | ||
| Harmonic Distortion THDv | Lineer Yükte ≤ %2 ; Lineer Olmayan Yükte ≤ %5 | ||
| Overload Capacity | 100% ~ 105%: Continuous / 105% ~ 130%: 60 sec. / 130% ~ 150%: 10 sec. / 150%: 300 ms | ||
| Transfer Time | Battery-Inverter=0 msn. / Inverter-Bypass= 4 ms / Eco Mode-Battery Mode< 10 ms | ||
| Number of Output Terminals | 3 Sockets | 4 Sockets | |
| EFFICIENCY | |||
| Mains Operation | ≥ %89 | ≥ %90 | ≥ %91 |
| BATTERY | |||
| Battery Voltage | 24 Vdc. (Std) | 48 Vdc. (Std) | 72 Vdc. (Std) |
| Number of Batteries / Capacity | 2*7 / 9 Ah | 4*7 / 9 Ah | 6*7 / 9 Ah |
| Battery Charging Current (Standard Model) | 1 Amp. | ||
| Battery Charging Current (Long Term) | 6 Amp. | ||
| Battery Charging Time | 5 hours for 90% Capacity | ||
| GENERAL FEATURES | |||
| Alarms | Mains Failure, Low Battery, Overload, UPS General Error | ||
| Display | LCD | ||
| EPO | Yes | ||
| Communication | Standart:RS 232, USB,Optional: SNMP – MODBUS – AS 400 Kart | ||
| ENVIRONMENTAL | |||
| Operational Temperature | 0 ˚C- 40 ˚C | ||
| Humidity | %20-%90 (Yoğunlaşmasız) | ||
| Ingress Protection | IP 20 | ||
| Acoustic Noise | ≤ 45-48 dB@1 m. | ||
| STANDARDS | |||
| Standards | LVD: EN 62040-1, EMC: EN 62040-2 | ||
| PHYSCIALLY | |||
| Dimensions (WxDxH) mm. | 144 x 347 x 229 | 190 x 391 x 297 | |
| Net Weight (kg) | 11 | 25 | |
| Gross Weight (kg) | 11,5 | 27 | |
