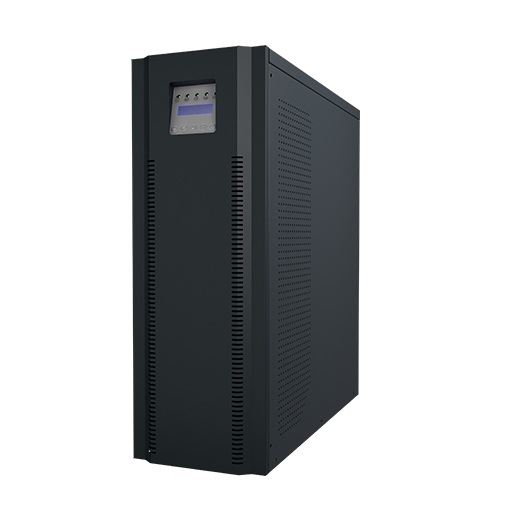

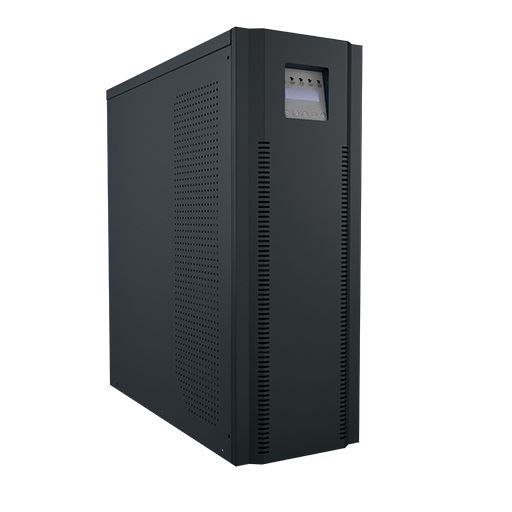

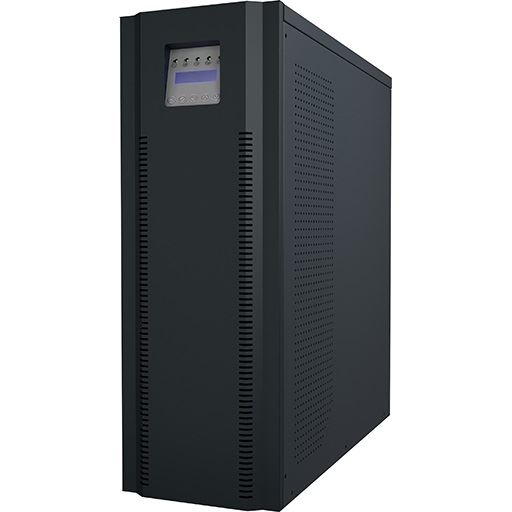

TMF-I SERIES 3 Phase Input - 1 Phase Output 10 kVA - 40 kVA Online UPS
Compact and ruggedly designed 3/1 Phase MF-I Series UPS with 3-Level IGBT topology is the perfect choice to protect loads in industrial and critical working.
- Online Double Conversion technology (VFI-SS-111)
- High Efficiency up to 96%
- Ability to Start from Battery with Cold Start
- Extending Battery Life up to 35% with Smart Charging System
- Triple Charging System with Heat Compensation
- Ability to Connect a Flexible Number of Batteries
- Longer Lasting Fan Run Time with Smart Fan Speed Control
- Ability to Work as a Frequency Converter (Between 50 Hz / 60 Hz)
- Input Operating Voltage (up to -40%) that Can Vary According to the Load, which Reduces Battery Usage
- Short Circuit, Overload, Lightning and Voltage Surge Protection
- Optional parallel operation with common or separate battery
- Standard Internal Static and Manual ByPass
- Remote Monitoring and Management Software
- SOFTWARE & CONNECTION SOLUTIONS
- RS232 and RS485 Connection
- 2 Configurable Input Contacts
- Alarm Relay Card, GenSet Contact, EPO Contact
- Optional USB Connection
- Remote Control Panel
- Battery Temperature Sensor for Stable Charging Temperature
- JBUS, PROFIBUS Connection
- SNMP IT Manager Monitoring
- Environment Sensors for Data Centers (Humidity, Temperature, Smoke, etc.)
- GSM, Telnet, GPRS connection
- Automatic Shutdown of PC’s and Servers
- Remote Monitoring Panel
- Building Management System
- Notification of Power Events by E-mail
- 24/7 technical service support with remote monitoring
| MODEL | TMF-I-10 | TMF-I-15 | TMF-I-20 | TMF-I-30 | TMF-I-40 | |
| Apparent Power (kVA) | 10 | 15 | 20 | 30 | 40 | |
| Active Power (kW) | 9 | 13,5 | 18 | 27 | 36 | |
| INPUT | ||||||
| Voltage | 3:1 // 380, 400, 415 V 3P+N+GND | |||||
| 1:1 // 220, 230, 240 V 1P+N+GND (Optional) | ||||||
| Voltage Tolerance | -%40/+%20 for %50 Load | |||||
| ±20 for %100 Load | ||||||
| Frequency | 45-65Hz | |||||
| Power Factor | 3/1:≥0,95; 1/1:≥0,99 | ≥0,99 | ||||
| OUTPUT | ||||||
| Voltage | 220Vac/230Vac/240Vac – Selectable from LCD Panel | |||||
| Voltage Regulation | ±%1 | |||||
| Frequency | OnlineMode: Sync with Mains (50/60Hz) ± 0,01 | |||||
| Wave Form | Pure Sine Wave | |||||
| Crest Factor | 3:1 | |||||
| Harmonic Distortion | Lineer Load ≤%2; Non Lineer Load ≤%5 | |||||
| Power Factor | 0,9 (0,8 and 1 Optional) | |||||
| Efficiency | Up to %96 | |||||
| Eco Mode Efficiency | Up to %98 (Optional) | |||||
| BYPASS | ||||||
| Voltage Tolerance | ±%10 | |||||
| Type | Internal Static ByPass and Manuel Maintenance ByPass | |||||
| Overload Capacity | 1 min@%150 Load | |||||
| BATTERY | ||||||
| Type | VRLA-AGM / GEL / Ni-Cd / Li-ion | |||||
| Battery Qty | Internal | 20 - 7/9 Ah | 28 - 7/9 Ah | 2x30 - 7/9 Ah | - | |
| With 4A Charge Board | 40 | |||||
| With13A Charge Board | 30-46 (Standart 30 pcs. Selectable from Panel) | |||||
| Charge Current | 1 A | 4A | ||||
| Battery Test | Automatic and Manuel | |||||
| Battery Charge Time | <6-8 hrs | |||||
| GENERAL | ||||||
| Topology | 3-Level, Double Conversion Online | |||||
| Front Panel | LCD Screen, Status LED's | |||||
| Communication (Optional) | RS485, Genset, SNMP, GSM Modem , Dry Contact, Modbus, USB | |||||
| Accessories (Optional) | Isolation Transformer, Remote Panel | |||||
| ENVIRONMENTAL | ||||||
| Operating Temperature | 0˚C-40˚C | |||||
| Storage Temperature | -15˚C...+40˚C | |||||
| Relative Humidity | <%95 (Non Condensed) | |||||
| Audible Noise | ≤55dB (from 1m.) | |||||
| Protection Level | Standart IP20 (Others Optional) | |||||
| STANDARDS | ||||||
| Harmonized Standards | EN 62040-1-1 (LVD), EN 62040-2 (EMC), EN 62040-3 (Performance) | |||||
| PHYSICAL | ||||||
| Dimensions (WxDxH) mm | 256*580*635 | 256*673*735 | 305*862*991 | |||
| Weight (kg) | 38 | 40 | 50 | 65 | 71 | |
