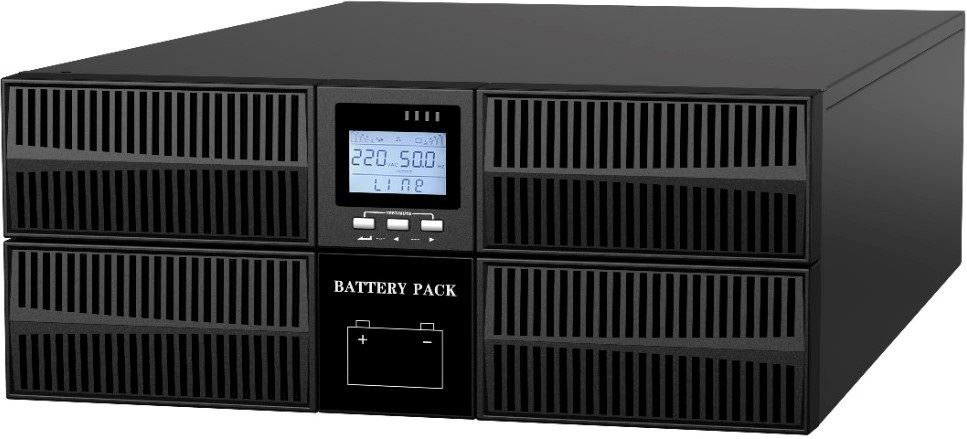

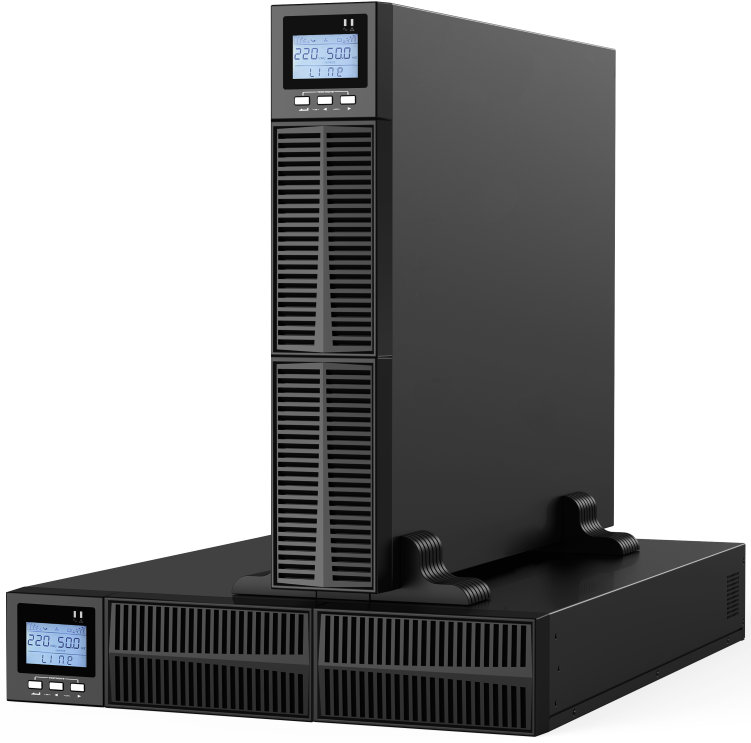

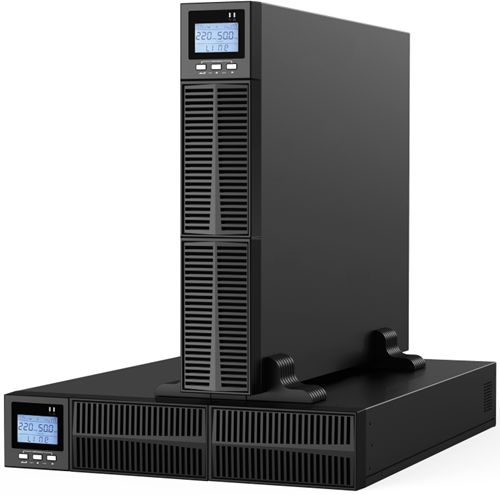

MFR Series Rack Type 1 kVA -10 kVA Online UPS
MFR Series provide sinusoidal waveform output and contains advanced communication options. These series are 1 phase input, 1 phase output online UPS.
MFR Series manufactured in different power ranges, are used to supply vital important equipment's such as medical analysis equipment's, operating rooms in hospitals, ultrasound equipment's, security systems, all kinds of automation systems, computer networks and communication systems. Thanks to higher protection providing technology. MFR series protect them from problems of utility failures and irregular voltage.
- Rack/Tower Operation
- High Frequency and True Double Conversion
- DSP Digital Processor Controlled
- Input Power Factor Correction (PFC)
- Wide Input Voltage Range (110 – 300 Vac)
- Cold Start (Battery Start) Feature
- Energy Saving Thanks to Eco Mode
- Output Voltage Selection via LCD Screen (208-220-230-240 Vac.)
- Load-Sensitive Fan Speed, Intelligent Battery Management (ABM)
- Overload and Short Circuit Protection
- Standard RS 232 Communication
- Optional USB / SNMP Communication
- Optional EPO - Emergency Stop
- Optional Parallel Operation (6-10 kVA)
- Environmentally Friendly, Excellent Design
- Electromagnetic Compatibility
| MODEL | MFR-1 | MFR-2 | MFR-3 | MFR-6 | MFR-10 | ||
| POWER | 1.000 VA | 2.000 VA | 3.000 VA | 6.000 VA | 10.000 | ||
| INPUT | |||||||
| Voltage | 208 Vac / 220 Vac / 230 Vac / 240 Vac | ||||||
| Voltage Range | %50 Load (115 – 295) ± 5 Vac | %50 Load ( 115 – 295 ) ± 5Vac | |||||
| %100 Load (145 – 295) ± 5Vac | %100 Load (165 –295) ± 5Vac | ||||||
| Frequency | 45-55 Hz ± % 0,5 / 55-65 Hz ± % 0,5 (Automatic Detection) | 40-70 Hz. ± % 0,5 | |||||
| Input Power Factor | ≥ 0,98 | ≥ 0,99 | |||||
| Bypass Voltage Range | – 34 / +32 Vac | 160Vac / + 32 Vac | |||||
| OUTPUT | |||||||
| Voltage | 208 Vac / 220 Vac / 230 Vac / 240 Vac – Selectable from LCD | ||||||
| Voltage Regulation | ± % 1 | ||||||
| Power Factor | 0,9 | 1 | |||||
| Frequency | Synchronous with Mains; 50/60 Hz. ± 0.2 Hz when operating from battery | ||||||
| Waveform | Pure Sine Wave | ||||||
| Crest Factor | 3:1 | ||||||
| Harmonic Distortion THDv | Lineer Load ≤ %3 ; Non Lineer Load ≤ %5 | ||||||
| Transfer Time | Online-Battery Mode ; 0 ms | ||||||
| Inverter- ByPass Mode : 4 ms | |||||||
| Overload Capacity | %105 - 150 Load 30 sec.; >%150 Load 300 ms. | %105 - %125 Load 3 min. -%125-150 Load 30 sec. | |||||
| >%160 Load 100 ms | |||||||
| EFFICIENCY | |||||||
| On-Line Mode | ≥ %90 | ≥ %92 | |||||
| Battery Mode | ≥ %87 | ≥ %91 | |||||
| Eco Mode | ≥ %98 | ≥ %98 | |||||
| BATTERY | |||||||
| Battery Voltage | 24 Vdc | 48 Vdc | 72 Vdc | 192 Vdc | |||
| Number of Batteries / Capacity | 2*12V 7/9Ah | 4*12V 7/9 Ah | 6*12V 7/9 Ah | 16*12V 7 Ah | 16*12V 7/9 Ah | ||
| Battery Qty/Additional Charger | 3 | 6 | 8 | 16-20 | 16-20 | ||
| Charging Current (Standard) | 1 Amp. | ||||||
| Charging Current (Long Term) | 6 Amp. | 1/3/5/8 Amp. | |||||
| Charging Time | 8 Hours for 80% Capacity | ||||||
| ALARMS | |||||||
| Low Battery | Audible Warning / 4 sec. | ||||||
| Overload | Audible Warning – Twice / 1 sec. | ||||||
| UPS General Error | Prolonged Audible Warning | ||||||
| ENVIRONMENTAL | |||||||
| Operational Temperature | 0 ˚C- 40 ˚C | ||||||
| Humidity | %20-%90 | ||||||
| Acoustic Noise | ≤ 50 dB @1m. | ≤ 55 dB @1m. | |||||
| COMMUNICATION | |||||||
| Standart RS 232 | Windows98/2000/2003/XP/Vista/2008/7/8 | ||||||
| Optional USB | |||||||
| Optional SNMP | Web Browser and Power Management via SNMP | ||||||
| STANDARDS | |||||||
| EN 62040-1 (LVD), EN 62040-2 (EMC) | |||||||
| DIMENSIONS | |||||||
| Dimensions (WxDxH) mm. | 440*330*88 | 440*430*88 | 440*630*88 | 440*680*176 | |||
| Packaged Dimensions (WxDxH) mm. | 580*480*200 | 630*510*170 | 630*710*170 | 535*785*259 | |||
| Net/Gross Weight (kg) | 14,3 / 17,7 | 23,4 / 26,8 | 29,7 / 33,1 | 38 / 40 | |||
