Line Interactive UPS

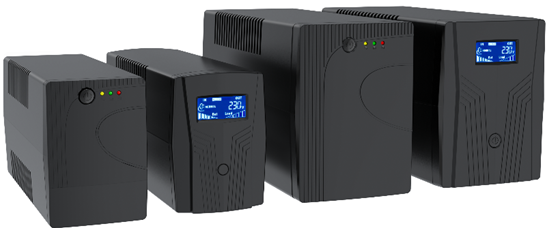

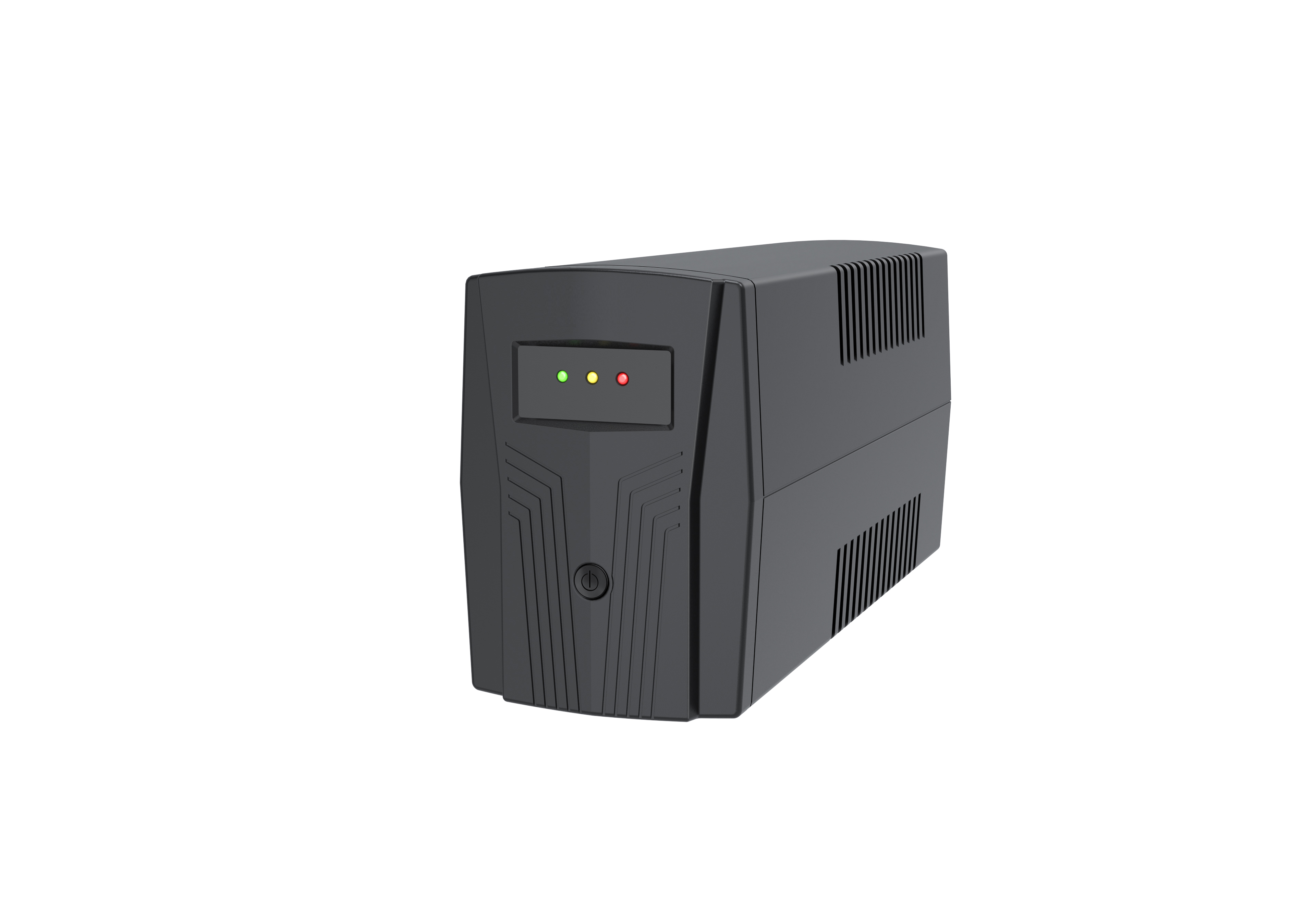

LI Series Line Interactive UPS 600 VA - 2000 VA
LI series UPS use Line-Interactive topology and is generally used for home or small office applications. This UPS transfer existing network power to load and charge the batteries at same time. These UPS are microprocessor controlled, fully automatic and easy to use. When the electric is cut off Inverter will work immediately and load will be fed from the batteries without any interruption. Back up time is standard and cannot be increased by adding new batteries. The batteries inside UPS are maintenance free. They are very silent working.
- LED Control Panel
- Microprocessor-Controlled Digital Control
- Automatic Voltage Adjustment
- Wide Input Voltage Range (170~280V)
- Automatic Fuse
- Easy-to-Understand Alarm System
- Output Power Factor = 0.6
- Cold Start (Starting from Battery without Mains Power)
- Simulated Sine Wave Output Form
- Intelligent Battery Control System
- Short Circuit and Overcurrent Protection
- Battery Deep Discharge Protection
- Automatic Frequency Detection
- Shutdown in Battery Mode during No-Load Operation
- Self-Test on Startup
- Automatic Battery Charging in Off Position
- RS 232 / USB Communication Port (Optional)
- LCD Screen (Optional)
- Electromagnetic Compatibility, EMC – LVD CE Certificates
| MODEL | LI-600 | LI-650 | LI-850 | LI-1000 | LI-1200 | LI-1500 | LI-2000 |
| POWER (VA.) | 600 VA | 650 VA | 850 VA | 1000 VA | 1200 VA | 1500 VA | 2000 VA |
| POWER (W.) | 360 W | 390 W | 510 W | 600 W | 720 W | 900 W | 1200 W |
| INPUT | |||||||
| Voltage | 220 / 230 / 240 Vac | ||||||
| Voltage Range | 162-295 Vac | ||||||
| Frequency | 50 / 60 Hz Automatic Detection | ||||||
| OUTPUT | |||||||
| Voltage Regulation | ± 10% (Battery Operation) | ||||||
| Frequency | 50 / 60 Hz. ± 1 Hz. | ||||||
| Waveform / Output Power Factor | Simulated Sine / 0.6 | ||||||
| Transfer Time | < 8-10 ms | ||||||
| Number of Output Sockets | 2 | 2 | 2 | 3 | 3 | 3 | 2 |
| BATTERY | |||||||
| Battery Voltage | 12 Vdc | 24 Vdc | |||||
| Number of Batteries | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Battery Type | 12V 7 Ah | 12V 7 Ah | 12V 8-9 Ah | 12V 7 Ah | 12V 7 Ah | 12V 9 Ah | 12V 9 Ah |
| Charging Time | 6-8 hours to 90% Capacity | ||||||
| Battery Protection | Overload, Short Circuit, Deep Discharge, High Charge Protection | ||||||
| Battery Management | Yes | ||||||
| FUNCTIONS | |||||||
| Display Features | Green LED - Mains Normal / Yellow LED - Battery Operation / Red LED - UPS Fault | ||||||
| Alarms | Audible Warning for Battery Operation, Low Battery and Overload | ||||||
| Short Circuit Protection | While mains is present; AC Fuse and Electronic protection While mains is interrupted; Electronic protection | ||||||
| Voltage Regulation | 2-Step boost and AVR Feature | ||||||
| Cold Start | Yes | ||||||
| ENVIRONMENTAL / STANDARDS | |||||||
| Operating Temperature | 0 ˚C- 40 ˚C | ||||||
| Audible Noise | < 45 dB (from 1 meter distance) | ||||||
| Standards | LVD; IECEN62040-1, EMC; IECEN62040-2 | ||||||
| DIMENSIONS | |||||||
| Dimensions (WxDxH) mm. | 100x280x142 | 136x328x186 | |||||
| Packaged Dimensions (WxDxH) mm. | 139x325x210 | 185x374x269 | |||||
| Net/Gross Weight (kg) | 5,2 - 5,5 | 5,2 - 5,5 | 8,8 - 9,4 | 9,4 - 10 | 10,2 - 10,8 | ||
